Anti-Reflection Coating

Broad and narrow band low reflection coatings are offered to reduce glare, improve contrast and increase transmission for a variety of applications.

Features

Increased Transmission
Improved Contrast
Reduction of Glare
Reduction of Stray light
Reduction of ghost images

Application

TV, CRT and Flat Panel Displays
Implosion Panels
Projection Systems
Windows
Second Surfaces of Beamsplitters
Instrument Covers
Optical Systems

Specifications

Designed and optimized for angle of incidence, substrate index and visual wavelengths.

Standard Coatings

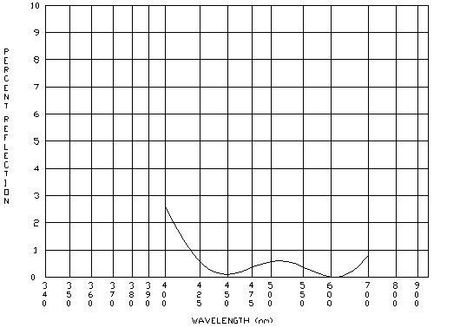

Multi-layer

Multi-layer broad band coating for visual applications that demand the lowest possible first surface reflection and maximum light transmission.

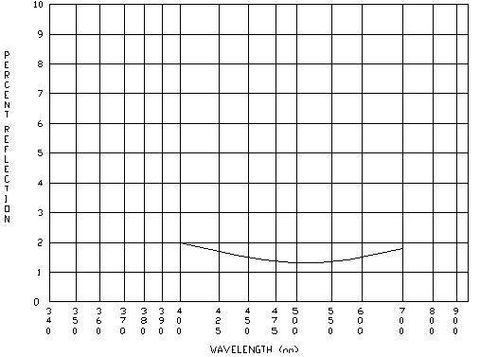

Single-layer

Single layer magnesium fluoride coating provides a minimum first surface reflection of 1.4% on glass substrates with an index of refraction of 1.52. Conforms with MIL-C-675.

Special designs to meet various Mil-Spec's, UV and IR, and unusual environments can be provided.
